Pigment Definitions and Technical Concepts

A pigment is the material component in paint that provides the color.

It is defined by its physical properties. The one that most people is familiar with, its the one above, its capability to give color to the media in which it is dispersed. We call this substance a binder. Its function is to hold together the pigment particles, and to make them adhesive to the painting substrate, and consist of three particular kinds: water-based, emulsions, and lipid-based.

The second defining quality of a pigment, is what differentiates it from a dye, which confers a substrate with color, but unlike pigments, a dye is totally soluble in its agluttinant, which tend to be volatile solvents: like water, Isopropyl Alcohol, mineral spirits, or aromatic organic compounds like Toluene. This physical property of being unable to dissolve in its agglutinant, is what conveys the pigments with their painting quality, because without it, we would be left just with a media and no body. This determining condition allows the pigments to create a suspension instead of a solution.

The third defining property is particle size. Although pre-industrial pigments featured less standardization and often included larger particles, a meaningful average size can still be established. The primary distinction from modern pigments lies not in the absolute measurement, but in the greater random variation in their particle dimensions. The standard range is established as 0.3 to 50 micrometers, though exceptions are frequent. For instance, transparent iron oxide pigments possess a finer granularity that confers translucency, by allowing light to pass across, while also providing enhanced UV protection through more efficient absorption of ultraviolet radiation. In contrast, coarse pigments may exceed 60 micrometers, even though, by today’s standards, that particle size is often classified as sediment.

Pigment Categories

Pigments can be arranged into a wide variety of categories. Their classification depends primarily on which parameters are being analyzed, according to the intended use. Often these classifications overlap, as one variable does not exclude another. In some cases, they relate in a parent-child hierarchy; for example, a natural pigment may be either organic or inorganic. However, since not all organic pigments are natural, they must be considered distinct sibling classes to avoid confusion. This situation does not present a complication once the basis for each division is understood, leading to a more practical application of the knowledge.

Pigment Particle Size

Green

Tyrian Purple:  purple dyed fabric with their corresponding sea snail

Bolinus brandaris Hexaplex trunculus Stramonita haemastoma (Thais haemastoma)
Exhibit of the Museum of Natural History in Vienna
Purple dyed fabric with their corresponding sea snail. Bolinus brandaris/ Hexaplex trunculus/ Stramonita haemastoma (Thais haemastoma). Exhibit of the Museum of Natural History in Vienna. November 29, 2018.

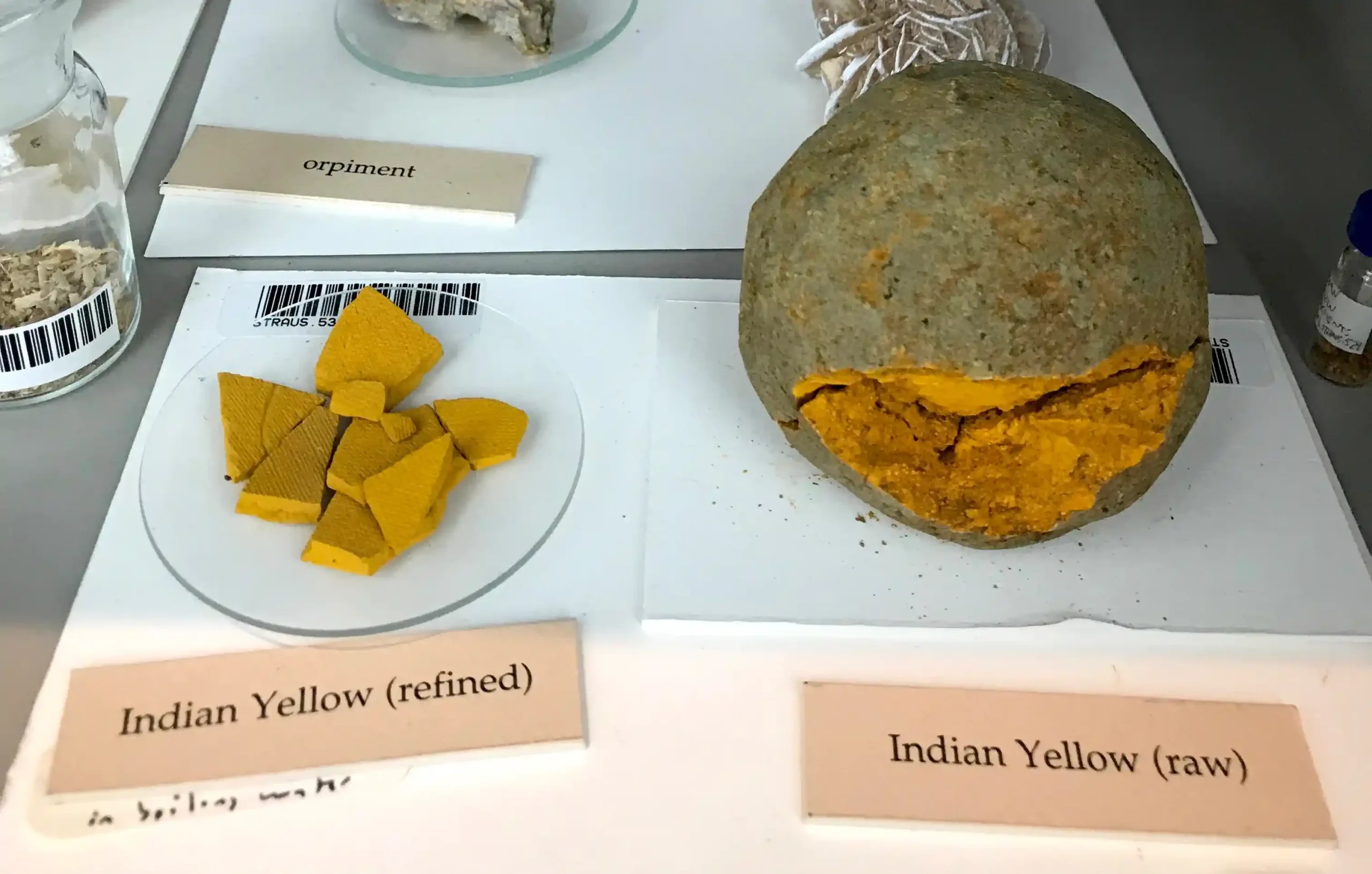

Indian Yellow refined and raw pigment samples.
Photo of Indian Yellow refined and raw samples. From the Forbes Collection at the Sackler Museum Harvard University: Cambridge, MA.
Bone Black raw sample from a fossil hippo charred Astragalus bone.
This charred bone has been identified as an astragalus, one of the ankle bones, of a fossil hippo. Department of Earth Sciences, University of Bristol. Bone Black. Pigment Through the Ages, 2008.

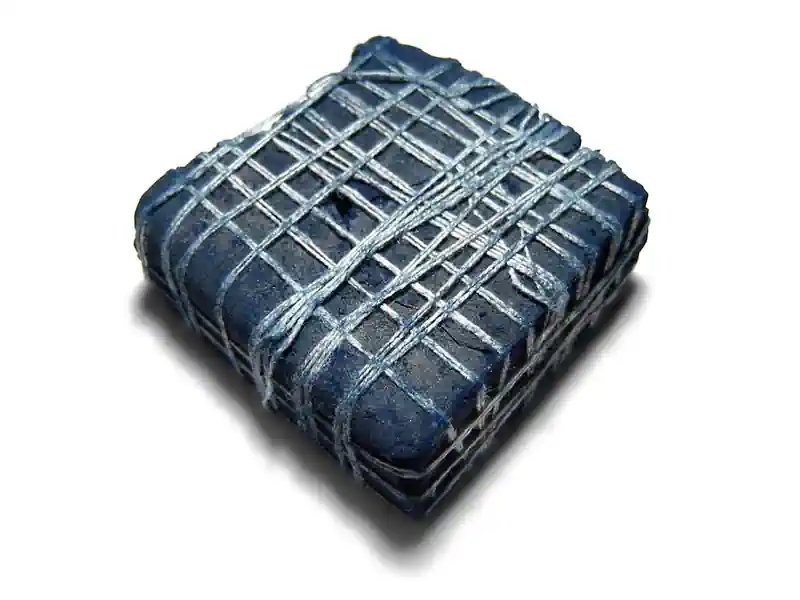

Piece of indigo plant dye from India, c. 6.35 cm (2.5 in) square. April 4, 2006.

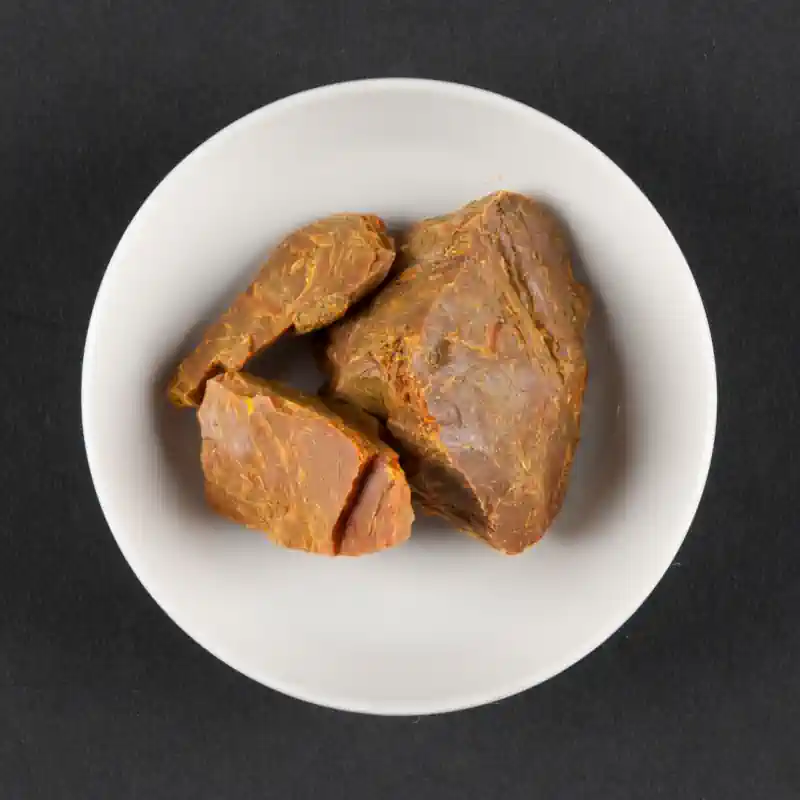

Refined Gamboge chunks. From the Museum of Fine Arts. Boston. March 31, 2024.

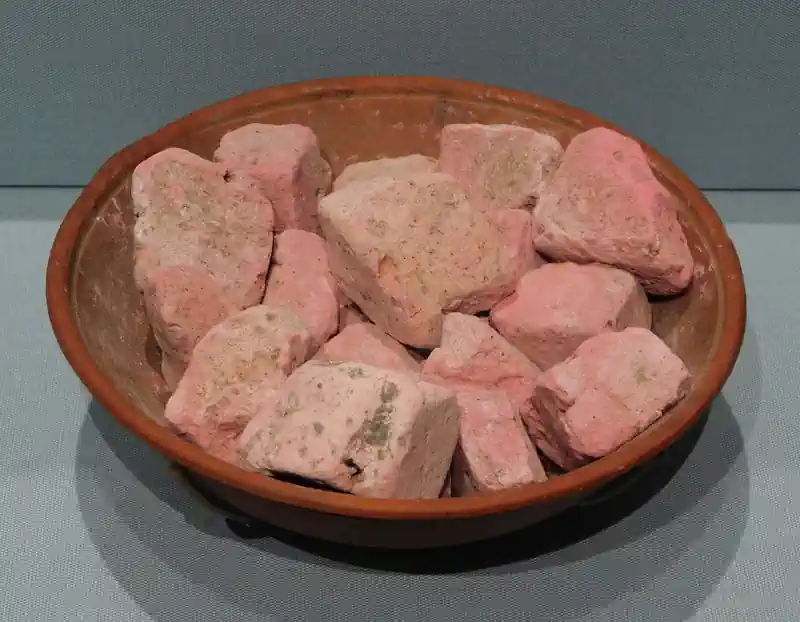

Small cup with chunks of Rose Madder pigment from Pompeii. National Archeological Museum of Naples. May 20,2022

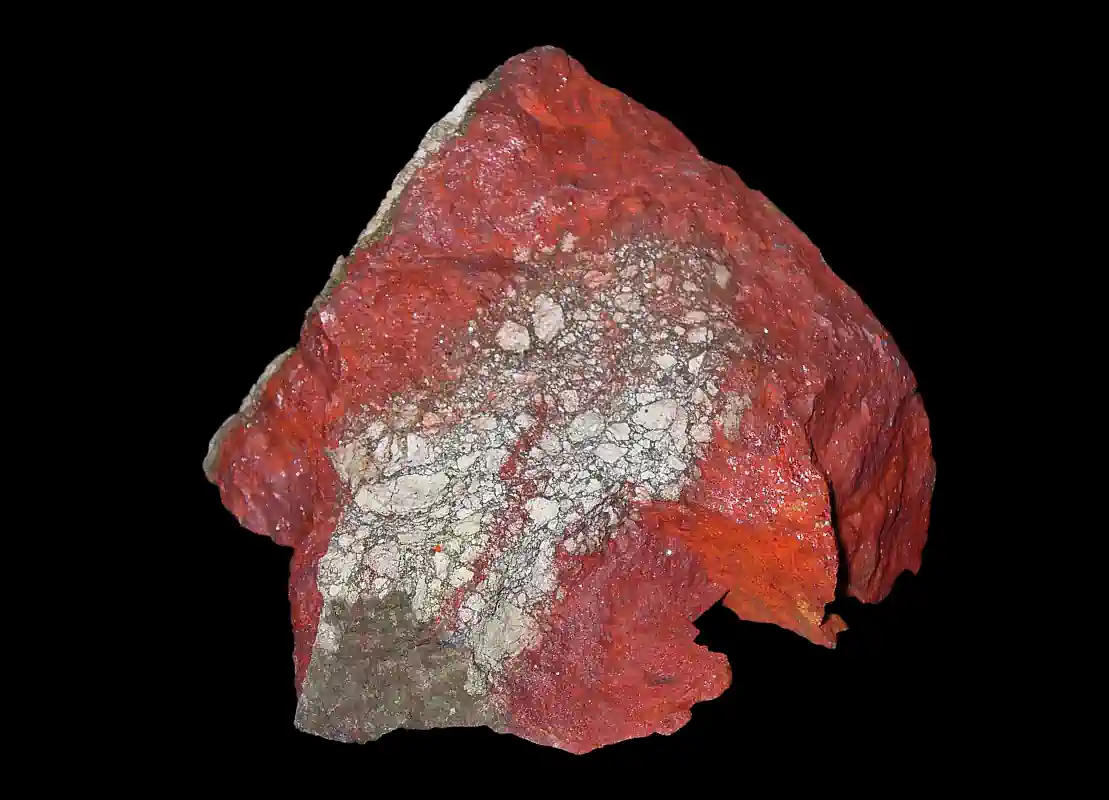

Cinnabar, Cinnabarite, HgS; Staatliches Museum für Naturkunde Karlsruhe, Germany. Used in homeopathy as remedy: Cinnabaris (Cinnb.) November 22, 2009.

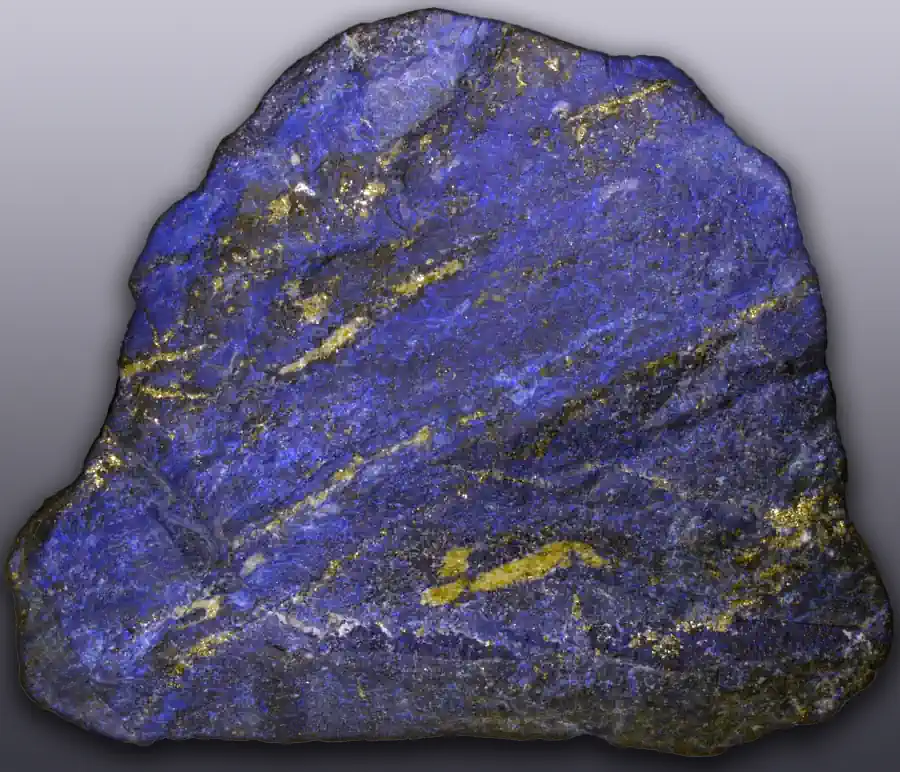

A slab of Lapis Lazuli in its raw form.
Afghan Lapis Lazuli slab with Pyrite vein. January 18, 2008.

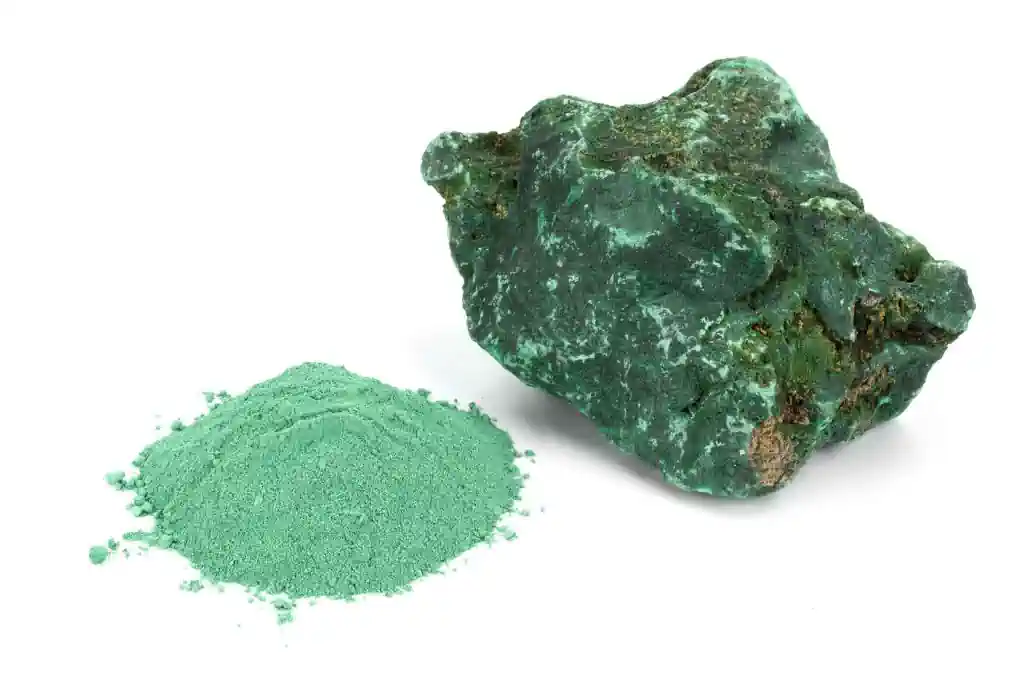

Raw malachite from Kremer Pigmente comes from Eastern Congo. Since it is a very crude ore, it then goes through a careful process of separation by hand, crushing, grinding, sieving, and levigation, inspired by old European and Chinese recipes, in order to “clean” its surface.
Manganese violet Michael Harding oil painting sample
Cobalt Violet Light Michael Harding oil painting sample
